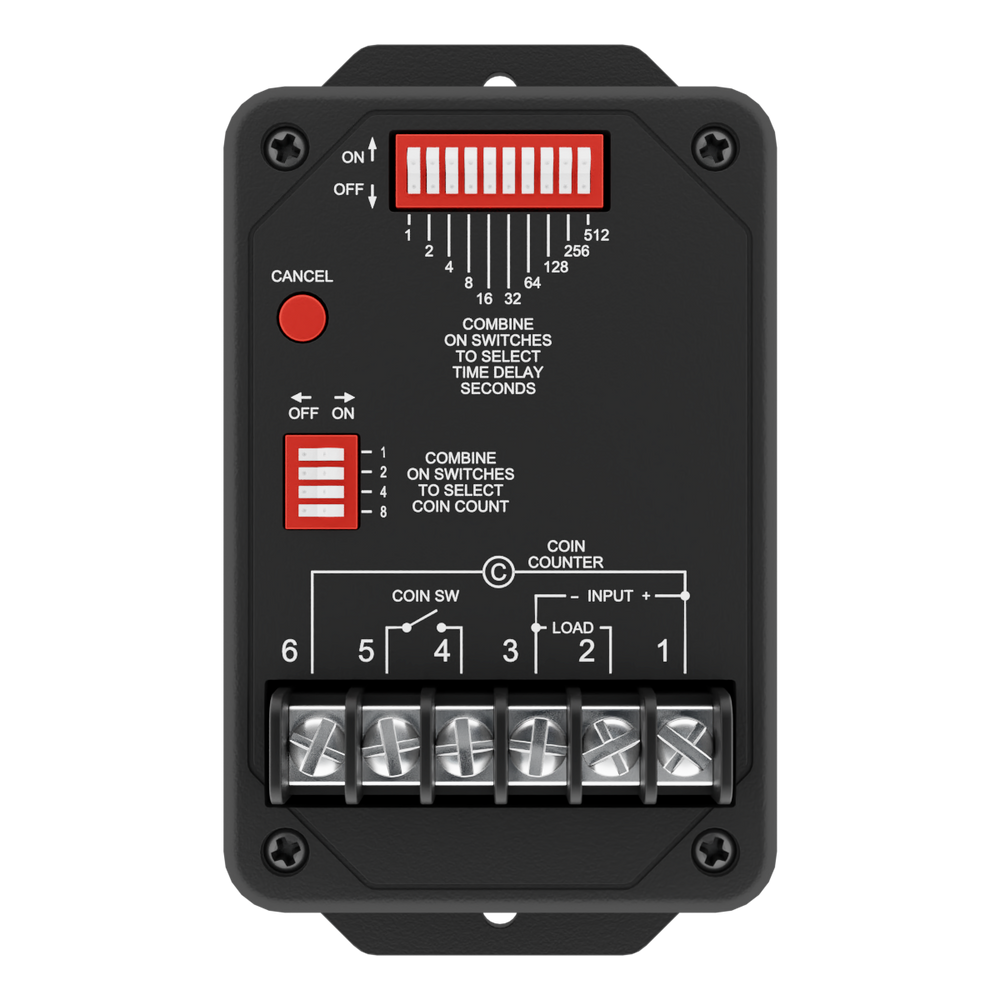

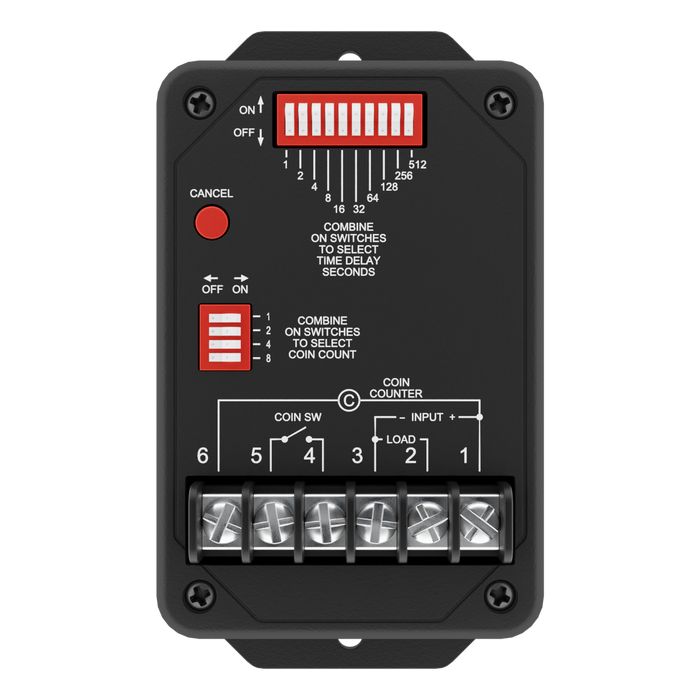

ASCR Series

Encapsulated Totalizer/Timer

Product Features

  • Microcontroller Based Circuitry
  • Accumulates 1 to 15 Coins
  • Multiple Time Delay Selection
  • Dual Control: No Interfacing Totalizer and Timer
  • Encapsulated To Withstand Harshest Environment
  • 0.5% Repeat Accuracy
  • Contacts Rated Up To 20 amps 2HP @ 240 VAC
  • UL and cUL Recognized


Series: ASCR

Mode of Operation Rating Output Form Time Range Repeat Accuracy
Vending Timer 20A Relay SPST 1- 1023 Seconds (2 Ranges) 0.5%
